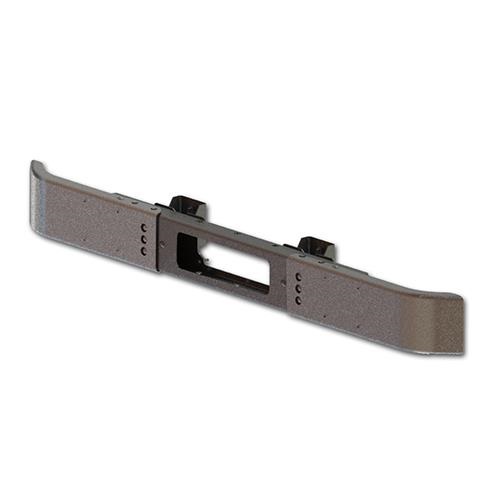

Spring Back Front Bumper W/ Center Cutout 93W F-59

205008001  /

Add to List Add to List
image - spring back front bumper w/
image - front bumper parts call out
image - spring back front bumper w/
image - front bumper parts call out
  • Spring Back Front Bumper
  • Mounting Brackets Sold Separately
  • See it in Action, Click Here
  • Note*  This item is stocked as individual components
  • Because of this, the web site will always say the complete assembly is "backordered"
ITEM #PART #DESCRIPTIONQTY.UM
1155008203Bumper Channel Outer Welded 93w2EA
2155008417Leaf Spring Front Stl .375x5x222EA
3167008200Front Spring Channel Assembly W/Cutout & Springs1EA
4167008402Channel Bumper Front  7GAX11.26X411EA
5167008401Channel Bumper Rear .25X14.91X55.091EA
6167008202Bumper Mounting Bracket LH/RH F-59 Sold Separately2EA
 052219Nut Locking  .5-13 GR 88EA
 1117036Bolt Steel HX/HD GR5  .5-13X1.58EA
 1117043Bolt Steel HX/HD GR5 .5-13X1.7514EA
 1117283Nut Locking   .5-13 GR526EA
 1117943Washer Flat GR5  .11X.53X1.050.856LB
 1117959Wasger Flat  .1X.53X1.750.293LB
 40000050Washer Flat  GR5  .11X.53X1.256EA
 40200660RivNut .25-204EA
 40300203Bolt Steel   GR5 .5-13X1.58EA
 40300265Bolt Steel Carriage  GR5  .5-13X24EA

ChassisWidthUse Part Number:License Plate FrameHood Style
FORD E Series88 Wide155008004NoAluminum
FORD E Series93 Wide155008005NoAluminum
FORD E-Series (W/cut out)93 Wide205008005NoAluminum
FORD F-5988 Wide197008001NoAluminum
FORD F-5993 Wide155008006NoAluminum
FORD F-5993 Wide205008001NoAluminum
FREIGHTLINER88 Wide167008006YesAluminum
FREIGHTLINER88 Wide197008000NoAluminum
FREIGHTLINER88 Wide167008001NoAluminum
FREIGHTLINER93 Wide167008003NoAluminum

Parts Breakdown

ITEM #PART #DESCRIPTIONQTY.UM
1155008203Bumper Channel Outer Welded 93w2EA
2155008417Leaf Spring Front Stl .375x5x222EA
3167008200Front Spring Channel Assembly W/Cutout & Springs1EA
4167008402Channel Bumper Front  7GAX11.26X411EA
5167008401Channel Bumper Rear .25X14.91X55.091EA
6167008202Bumper Mounting Bracket LH/RH F-59 Sold Separately2EA
 052219Nut Locking  .5-13 GR 88EA
 1117036Bolt Steel HX/HD GR5  .5-13X1.58EA
 1117043Bolt Steel HX/HD GR5 .5-13X1.7514EA
 1117283Nut Locking   .5-13 GR526EA
 1117943Washer Flat GR5  .11X.53X1.050.856LB
 1117959Wasger Flat  .1X.53X1.750.293LB
 40000050Washer Flat  GR5  .11X.53X1.256EA
 40200660RivNut .25-204EA
 40300203Bolt Steel   GR5 .5-13X1.58EA
 40300265Bolt Steel Carriage  GR5  .5-13X24EA

ChassisWidthUse Part Number:License Plate FrameHood Style
FORD E Series88 Wide155008004NoAluminum
FORD E Series93 Wide155008005NoAluminum
FORD E-Series (W/cut out)93 Wide205008005NoAluminum
FORD F-5988 Wide197008001NoAluminum
FORD F-5993 Wide155008006NoAluminum
FORD F-5993 Wide205008001NoAluminum
FREIGHTLINER88 Wide167008006YesAluminum
FREIGHTLINER88 Wide197008000NoAluminum
FREIGHTLINER88 Wide167008001NoAluminum
FREIGHTLINER93 Wide167008003NoAluminum
