- 1,171.54 USD
- Notify me when available

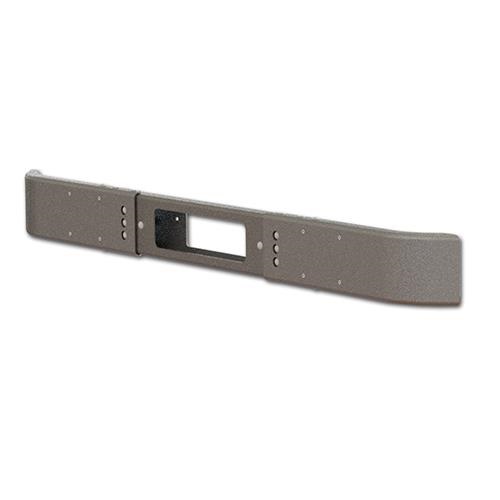

- Spring Back Front Bumper
- See it in Action, Click Here
- Note* This item is stocked as individual components
- Because of this, the web site will always say the complete assembly is "backordered"
ITEM # | PART # | DESCRIPTION | QTY. | UNIT |
1 | 155008203 | Bumper Channel Outer Welded 93w | 2 | EA |
2 | 167008402 | Channel Bumper Front 7GAX11.26X41 | 1 | EA |
3 | 155008417 | Leaf Spring Front Stl .375x5x22 | 2 | EA |
4 | 205008403 | Channel Bumper Mount .25X14.91X55.09 | 1 | EA |
1117943 | Washer Flat GR5 .11X.53X1.05 | 0.1429 | LB | |
1117043 | Bolt Steel HX/HD GR5 .5-13X1.75 | 8 | EA | |
052219 | Nut Locking .5-13 GR 8 | 8 | EA | |
1117036 | Bolt Steel HX/HD GR5 .5-13X1.5 | 8 | EA | |
1117283 | Nut Locking .5-13 GR5 | 20 | EA | |
1117943 | Washer Flat GR5 .11X.53X1.05 | 0.1429 | LB | |
1117959 | Washer Flat .1X.53X1.75 | 0.39 | LB | |
40000050 | Washer Flat GR5 .11X.53X1.25 | 8 | EA | |
40300203 | Bolt Steel GR5 .5-13X1.5 | 8 | EA | |
40300265 | Bolt Steel Carriage GR5 .5-13X2 | 4 | EA | |
49013648 | RivNut .25-20 | 4 | EA |
Chassis | Width | Use Part Number: | Lic Frame | Hood | |
FORD E Series | 88 Wide | 155008004 | no | AL Hood | |
FORD E Series | 93 Wide | 155008005 | no | AL Hood | |
FORD E Series | 93 Wide | 205008005 | no | AL Hood | |
FORD F-59 | 88 Wide | 197008001 | no | AL Hood | |
FORD F-59 | 88 Wide | 167008005 | Yes | AL Hood | |
FORD F-59 | 93 Wide | 155008006 | no | AL Hood | |
FORD F-59 | 93 Wide | 205008001 | no | AL Hood | |
FREIGHTLINER | 93 Wide | 167008003 | no | AL Hood | |
FREIGHTLINER | 88 Wide | 167008006 | Yes | AL Hood | |
FREIGHTLINER | 88 Wide | 248008000 | Yes | AL Hood |
