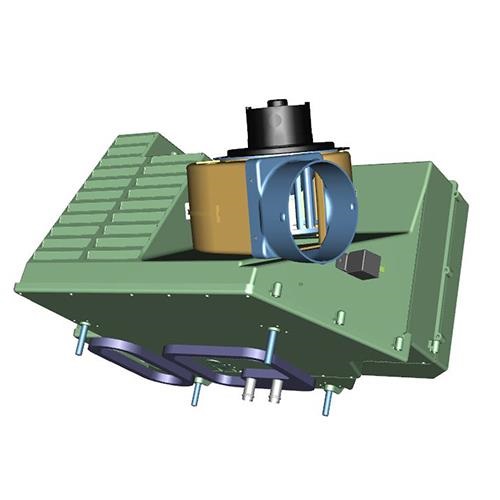

Heater Assembly 2011

555001014  /

  • Obsolete
  • Replaced by P/N 555001018
ITEM #PART #DESCRIPTIONQTYUNIT
147008766HOUSING ASSEMBLY UPPER1EA
247008760HEATER COIL WITH GASKETS / CLAMP1EA
3CALLHEATER PARTITION1EA
447008753DOOR W/ SEAL1EA
5CALLHOUSING ASSEMBLY LOWER1EA
6CALLHOUSING ASSEMBLY BACK1EA
747008754BLOWER HOUSING1EA
847008755BLOWER ADAPTER1EA
947008732RESISTOR CAGE1EA
1047008460RESISTOR  1EA
1147008731VENT TUBE ADAPTER1EA
1246032340BLOWER MOTOR1EA
1347008769BLOWER WHEEL1EA
1447008799CLIP BLOWER SHAFT1EA
1547008730VENT TUBE1EA
1647008716RELAY1EA
1747008758HARNESS1EA
18N/AGASKET1EA
19N/AGASKET1EA
NS555002056WATER VALVE1EA

Parts Breakdown

ITEM #PART #DESCRIPTIONQTYUNIT
147008766HOUSING ASSEMBLY UPPER1EA
247008760HEATER COIL WITH GASKETS / CLAMP1EA
3CALLHEATER PARTITION1EA
447008753DOOR W/ SEAL1EA
5CALLHOUSING ASSEMBLY LOWER1EA
6CALLHOUSING ASSEMBLY BACK1EA
747008754BLOWER HOUSING1EA
847008755BLOWER ADAPTER1EA
947008732RESISTOR CAGE1EA
1047008460RESISTOR  1EA
1147008731VENT TUBE ADAPTER1EA
1246032340BLOWER MOTOR1EA
1347008769BLOWER WHEEL1EA
1447008799CLIP BLOWER SHAFT1EA
1547008730VENT TUBE1EA
1647008716RELAY1EA
1747008758HARNESS1EA
18N/AGASKET1EA
19N/AGASKET1EA
NS555002056WATER VALVE1EA
