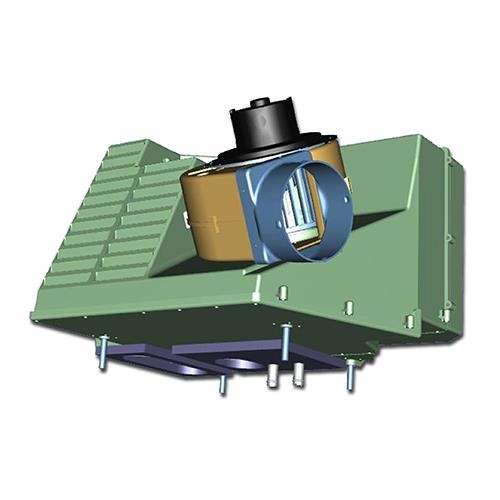

- Heater / A/C Assembly
- Same as 555001108 with Drain added in lower housing.
| ITEM # | PART # | DESCRIPTION | QTY | UNIT |
| 1 | Call | Housing Assembly Upper | 1 | EA |
| 2 | 47008760 | Heater Coil W/Gasket & Clamp | 1 | EA |
| 3 | Call | A/C Partition | 1 | EA |
| 4 | Call | Door | 1 | EA |
| 5 | Call | Housing Assy, Lower | 1 | EA |
| 6 | Call | Housing Assy, Back | 1 | EA |
| 7 | 47008754 | Blower Housing | 1 | EA |
| 8 | 47008755 | Blower Adapter | 1 | EA |
| 9 | 47008732 | Resister Cage | 1 | EA |
| 10 | 47008460 | Resister | 1 | EA |
| 11 | 47008731 | Vent Tube Adapter | 1 | EA |
| 12 | 46032340 | Blower Motor | 1 | EA |
| 13 | 47008769 | Blower Wheel | 1 | EA |
| 14 | 47008799 | Clip Blower Shaft | 1 | EA |
| 15 | 47008730 | Vent Tube | 1 | EA |
| 16 | 47008716 | Relay | 1 | EA |
| 17 | 47008768 | Harness | 1 | EA |
| 18 | N/A | Gasket | 1 | EA |
| 19 | N/A | Gasket | 1 | EA |
| 20 | 47008763 | Evaporator Coil Assembly | 1 | EA |
| 21 | 47008138 | Expansion Valve | 1 | EA |
| 22 | 47008705 | Servo Motor | 1 | EA |
| 23 | 47008615 | Thermostat | 1 | EA |
| 24 | 47008624 | Filter | 1 | EA |
| 25 | 47008625 | Filter | 1 | EA |
