Roll Up Door 1/4" Composite

47005935 /

Item #	Part #	Description
1	47106701	Lift Handle White
2	47106727	95" 7 x 19 SS Cable 1/4" Metal Eye
3	47106703	Bracket Cable Anchor White
4	47106706	Pin Cable Anchor Bracket
5	47106719	Cotter Pin 3/32
6	47106774	L-Handle, Non-Keyed
7	47106783	Screw 10-24 x 1" SS
8	47106784	Nut 10-24 SS Nylok
9	Call W/ S/N	1/4" Composite Top Panel
10	Call W/ S/N	1/4" Composite Intermediate Panel
11	Call W/ S/N	1/4" Composite Intermediate Panel
12	Call W/ S/N	1/4" Composite Latch Panel Complete
13	Call W/ S/N	1/4" Composite Bottom Panel Complete
14	47106686	Top Seal - Brush Type
15	47106831	Bottom Seal 70"
16	47106687	Side Seal Assembly - Brush Type
17	47106685	Header Seal Assembly Rubber
18	47000160	Lock Assembly
19	165073400	Plate - Lock Support

ITEM#	PART#	DESCRIPTION
20	47106737	Bearing Assembly
21	47106794	Bearing Only
NS	47106787	2” Head Protector Yellow
23	47106740	Lock Catch
24	47106758	Catch Mounting Plate - LH (CS)
25	47106759	Catch Mounting Plate - RH (RS)
26	47106716	2 Point End Latch (CS) .91 offset
27	47106717	2 Point End Latch (RS) .91 offset
28	47106891	2-Point Center Control with D Handle
29	47106860	Cable Assembly 26.375”
30	47106796	Lift Handle Black
31	47106833	2" Premium Nylon Roller
32	47106718	Washer - Roller Spacer
33	47106802	60” Pull Strap Black Retainers No Loop
34	47106710	Top Closure Assembly
35	47106731	Hinge Center Heavy Duty
36	47106776	Hinge with Studs Heavy Duty
37	47106760	Roller Cover Heavy Duty
38	47106764	Bottom Roller Fixture 3 Stud
39	47106839	Cable Cover Aluminum X61.3"
40	47106753	Cable Drum Roadside
41	47106754	Cable Drum Curbside
42	Pending	Counterbalance Assembly
43	47106858	SPRING W/ PLUG
44	Pending	Horizontal Track Assembly Curbside
45	Pending	Horizontal Track Assembly Roadside
46	Pending	Vertical Track Assembly Curbside
47	Pending	Vertical Track Assembly Roadside
NS	47106744	5/16” -18 KEEP NUT

Item #	Part #	Description
1	47106701	Lift Handle White
2	47106727	95" 7 x 19 SS Cable 1/4" Metal Eye
3	47106703	Bracket Cable Anchor White
4	47106706	Pin Cable Anchor Bracket
5	47106719	Cotter Pin 3/32
6	47106774	L-Handle, Non-Keyed
7	47106783	Screw 10-24 x 1" SS
8	47106784	Nut 10-24 SS Nylok
9	Call W/ S/N	1/4" Composite Top Panel
10	Call W/ S/N	1/4" Composite Intermediate Panel
11	Call W/ S/N	1/4" Composite Intermediate Panel
12	Call W/ S/N	1/4" Composite Latch Panel Complete
13	Call W/ S/N	1/4" Composite Bottom Panel Complete
14	47106686	Top Seal - Brush Type
15	47106831	Bottom Seal 70"
16	47106687	Side Seal Assembly - Brush Type
17	47106685	Header Seal Assembly Rubber
18	47000160	Lock Assembly
19	165073400	Plate - Lock Support

ITEM#	PART#	DESCRIPTION
20	47106737	Bearing Assembly
21	47106794	Bearing Only
NS	47106787	2” Head Protector Yellow
23	47106740	Lock Catch
24	47106758	Catch Mounting Plate - LH (CS)
25	47106759	Catch Mounting Plate - RH (RS)
26	47106716	2 Point End Latch (CS) .91 offset
27	47106717	2 Point End Latch (RS) .91 offset
28	47106891	2-Point Center Control with D Handle
29	47106860	Cable Assembly 26.375”
30	47106796	Lift Handle Black
31	47106833	2" Premium Nylon Roller
32	47106718	Washer - Roller Spacer
33	47106802	60” Pull Strap Black Retainers No Loop
34	47106710	Top Closure Assembly
35	47106731	Hinge Center Heavy Duty
36	47106776	Hinge with Studs Heavy Duty
37	47106760	Roller Cover Heavy Duty
38	47106764	Bottom Roller Fixture 3 Stud
39	47106839	Cable Cover Aluminum X61.3"
40	47106753	Cable Drum Roadside
41	47106754	Cable Drum Curbside
42	Pending	Counterbalance Assembly
43	47106858	SPRING W/ PLUG
44	Pending	Horizontal Track Assembly Curbside
45	Pending	Horizontal Track Assembly Roadside
46	Pending	Vertical Track Assembly Curbside
47	Pending	Vertical Track Assembly Roadside
NS	47106744	5/16” -18 KEEP NUT

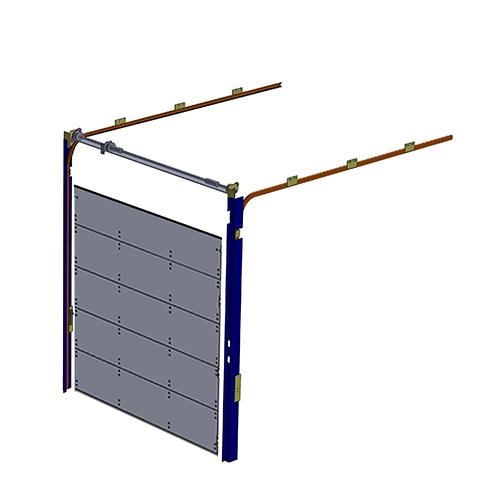

Parts Breakdown Exterior View
