A/C Parts Kit Freightliner Diesel

990002134 /

Item #	Part #	Description
1	47008627	#6 Hose Assembly (CONDENSER TO RECEIVER/DRIER)
2	47008687	#6 HOSE ASSEMBLY (RECEIVER to EVAPORATOR) **
3	47008629	#8 HOSE ASSEMBLY (COMPRESSOR TO CONDENSER)
4	47008670	#10 HOSE ASSEMBLY (EVAPORATOR TO COMPRESSOR)
5	47008355	RECEIVER / DRIER
6	990002211	RECEIVER / DRIER BRACKET
7	47008865	WIRE HARNESS
8	990002214	BINARY PRESSURE SWITCH
9	47008716	RELAY
10	47008866	FAN CONTROL PRESSURE SWITCH
11	47008507	WIRE HARNESS FAN CONTROL
NS	990002217	#6 O-RING (QTY. 2 REQ)
NS	47008153	#8 O-RING (QTY. 2 REQ)
NS	990002218	#10 O-RING (QTY. 2 REQ)
NS	990002216	LABEL, REFRIGERANT
NS	555002163	Tie Wrap 21"
**Order replacement hose 47008628 for vehicles with fan control pressure switch mounted to the receiver/drier. This will include vehicles built prior to mid-October 2015.

Item #	Part #	Description
1	47008627	#6 Hose Assembly (CONDENSER TO RECEIVER/DRIER)
2	47008687	#6 HOSE ASSEMBLY (RECEIVER to EVAPORATOR) **
3	47008629	#8 HOSE ASSEMBLY (COMPRESSOR TO CONDENSER)
4	47008670	#10 HOSE ASSEMBLY (EVAPORATOR TO COMPRESSOR)
5	47008355	RECEIVER / DRIER
6	990002211	RECEIVER / DRIER BRACKET
7	47008865	WIRE HARNESS
8	990002214	BINARY PRESSURE SWITCH
9	47008716	RELAY
10	47008866	FAN CONTROL PRESSURE SWITCH
11	47008507	WIRE HARNESS FAN CONTROL
NS	990002217	#6 O-RING (QTY. 2 REQ)
NS	47008153	#8 O-RING (QTY. 2 REQ)
NS	990002218	#10 O-RING (QTY. 2 REQ)
NS	990002216	LABEL, REFRIGERANT
NS	555002163	Tie Wrap 21"
**Order replacement hose 47008628 for vehicles with fan control pressure switch mounted to the receiver/drier. This will include vehicles built prior to mid-October 2015.

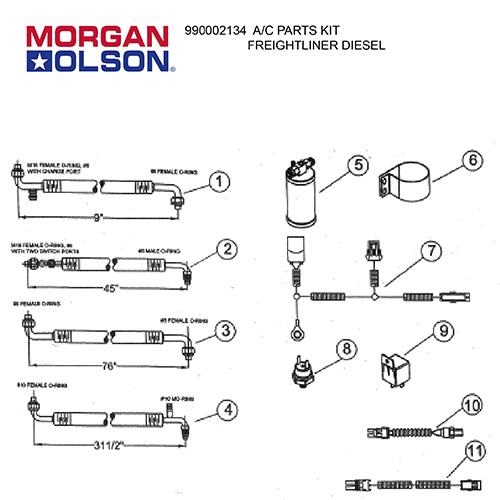

Parts Breakdown
